Grain Oriented Electrical Steel
Oriented silicon steel is a low-carbon silicon iron alloy material with a silicon content of 0.5%~4.5%, which has characteristics such as high permeability(which can reduce Joule loss in power equipment, improve efficiency and energy-saving effects), lower iron loss and high resistance coefficient.
Raw material:CRGO silicon steel from Bao-steel and WISCO.
| Type | Grade | Width | Max Core Loss@P1.7T/50Hz | Lamination Factor(%) | Min Induction@B800 |
| Common Type | 23Q110 | 900-1200mm | 1.10w/kg | 97.2 | 1.82T |
| 23Q120 | 1.20w/kg | 97.2 | 1.82T | ||
| 27Q120 | 1.20w/kg | 97.5 | 1.82T | ||
| 30G120 | 1.20w/kg | 98 | 1.82T | ||
| High Induction Type | B20P085 | 900-1200mm | 0.85w/kg | 97 | 1.86T |
| B23P085 | 0.85w/kg | 97.2 | 1.88T | ||
| B23P090 | 0.90w/kg | 97.2 | 1.88T | ||
| B23P095 | 0.95w/kg | 97.2 | 1.88T | ||
| B23P100 | 1.00w/kg | 97.2 | 1.88T | ||
| B27P095 | 0.95w/kg | 97.5 | 1.89T | ||
| B27QG120 | 1.20w/kg | 97.5 | 1.89T | ||
| B30P120 | 1.20w/kg | 98 | 1.89T | ||
| Domain Refined High Induction Type(Laser) | B20R070 | 900-1200mm | 0.70w/kg | 97 | 1.86T |
| B23RK085 | 0.85w/kg | 97.2 | 1.88T | ||
| B27RK085 | 0.85w/kg | 97.5 | 1.89T |
1.Which products can we provide?

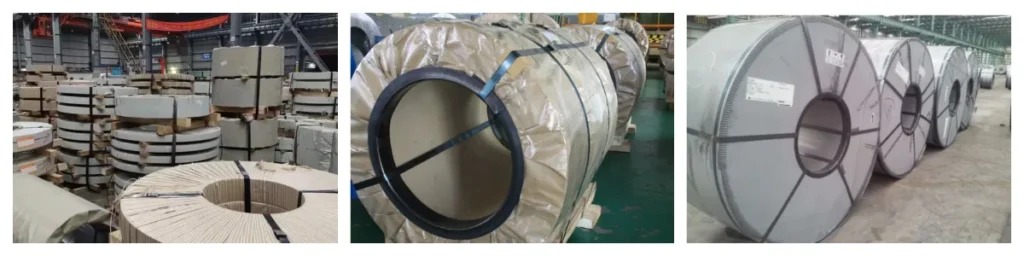

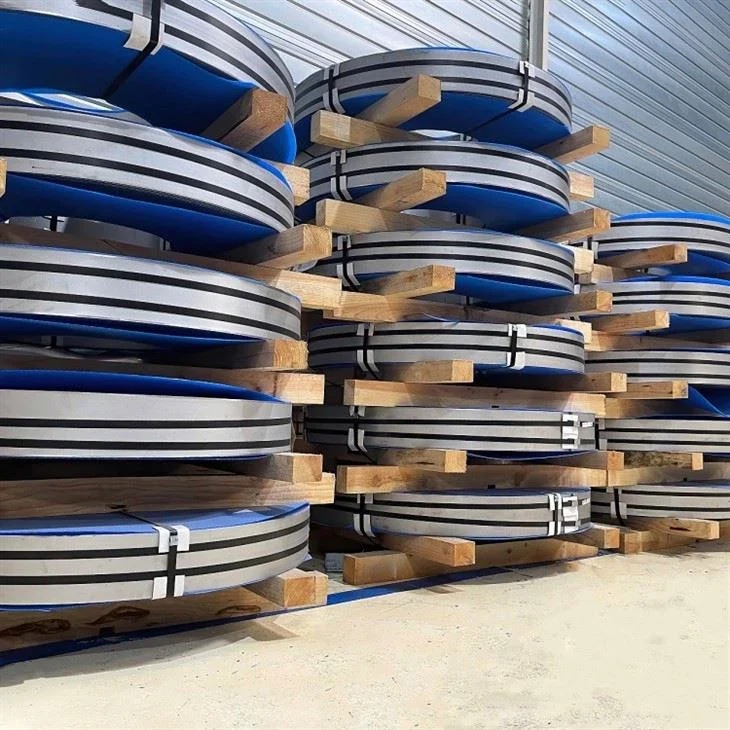

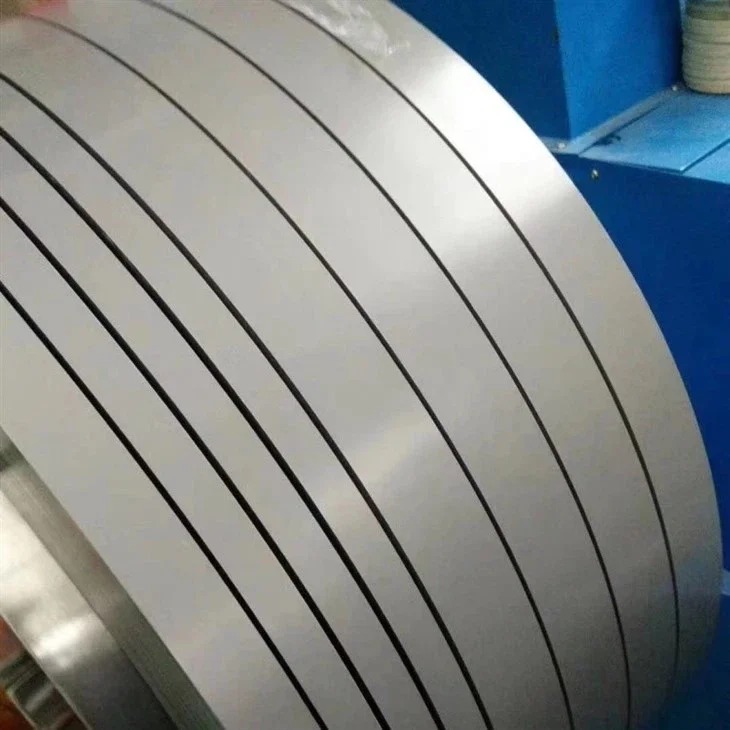

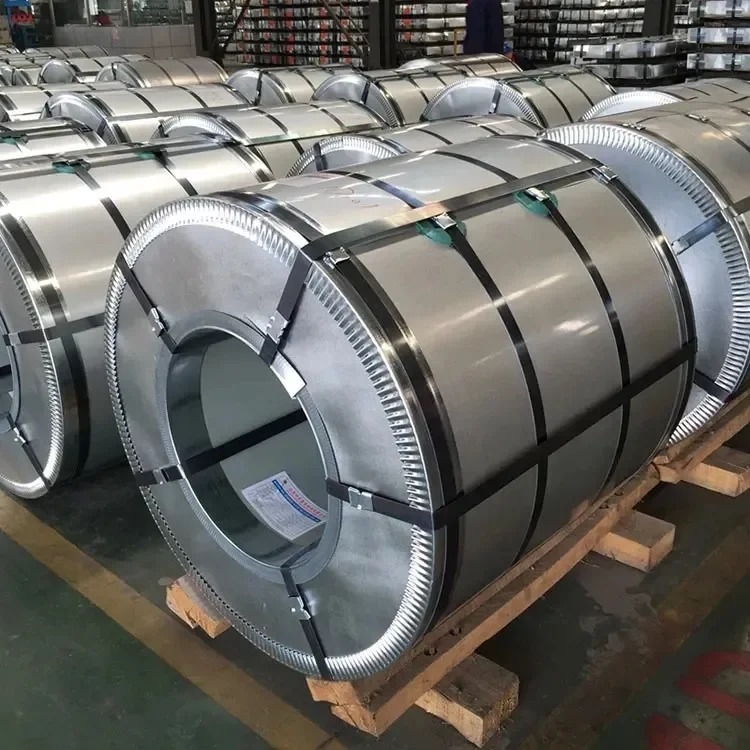

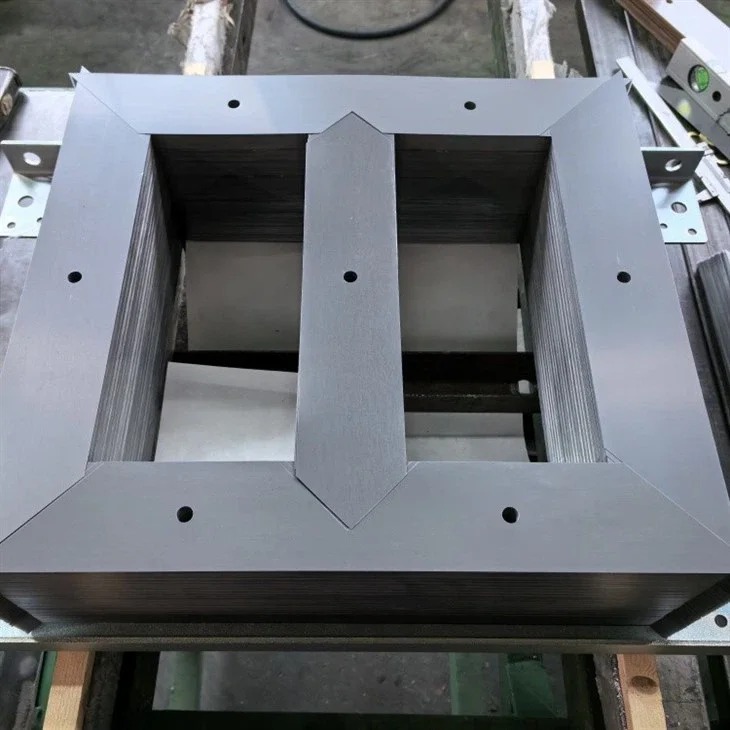

CRGO mother coils,slit coils,transformer lamination,OEM transformer core.
2. Who are we?
We are pioneer of CRGO silicon steel products in china,exclusive user of bao-steel,have established joint lab with bao-steel.
3.How can we guarantee quality?
We produce according to ISO9001:2015 Standard.Before placing order,our engineer will calculate carefully.After production,we will test it before sending out.
4. why should you buy from us not from other suppliers?

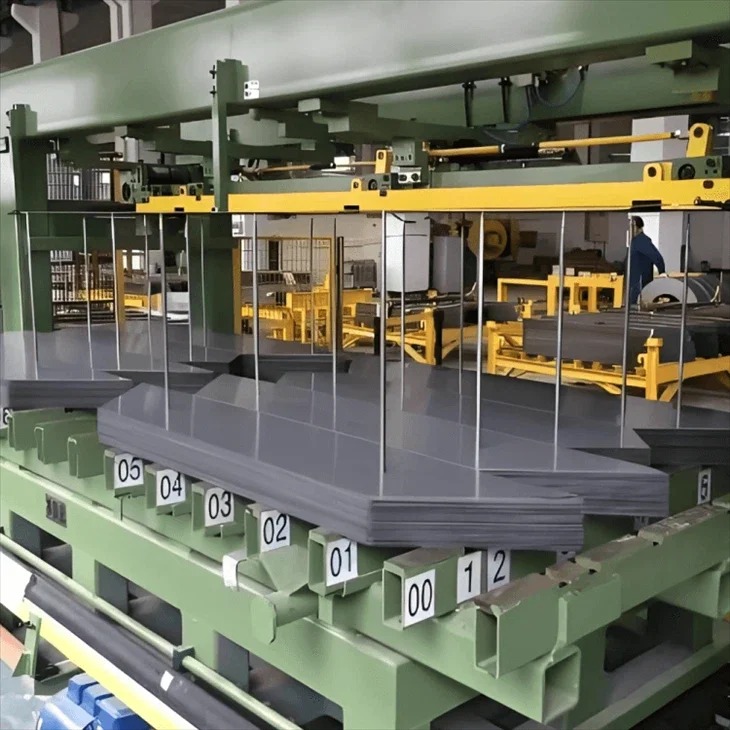

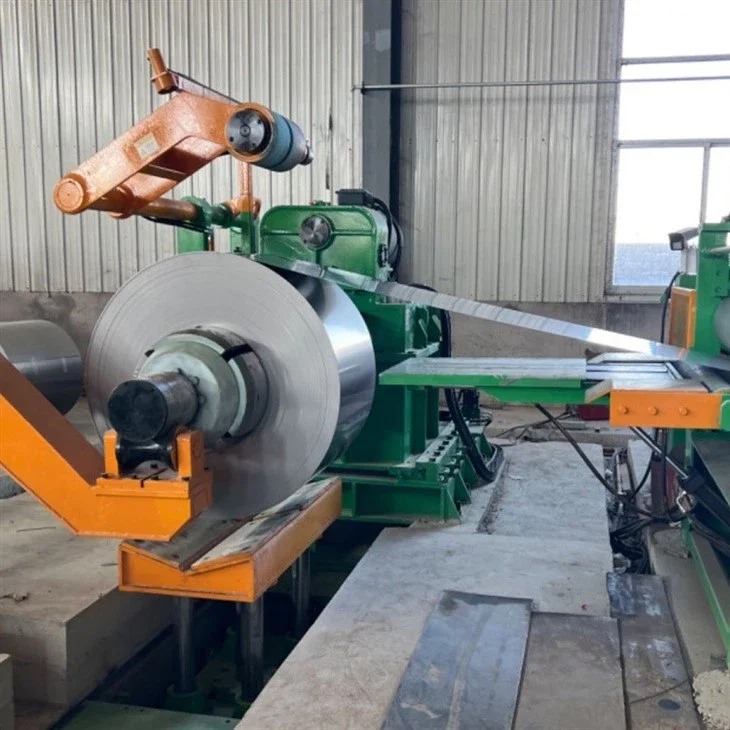

We have over 30years experience of producing transformer core, assembled with advanced Germany slitted cutting system,Georg 800 cross cutting E-stack machine.Our Annual transformer core production capacity is over 100,000 tons.
