Grain Oriented Electrical Steel

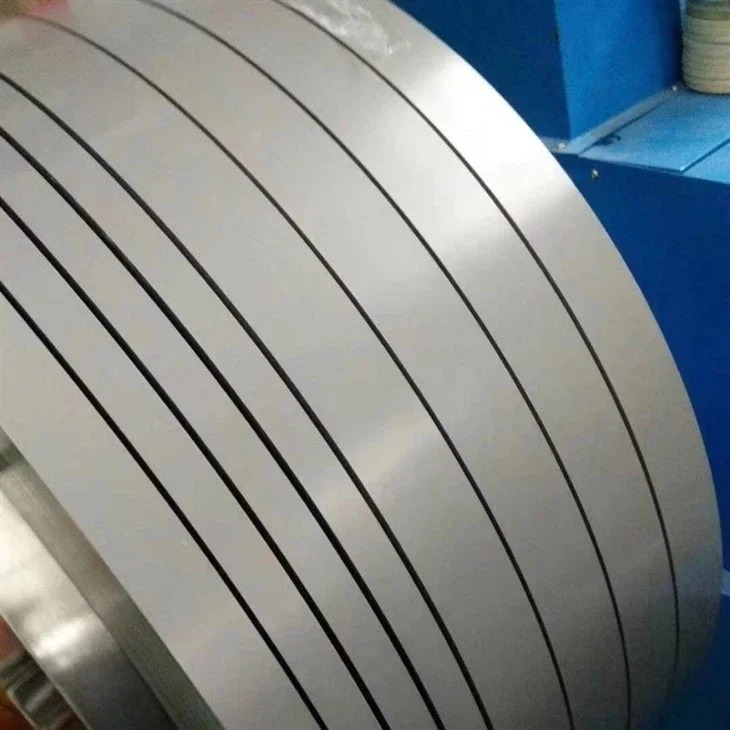

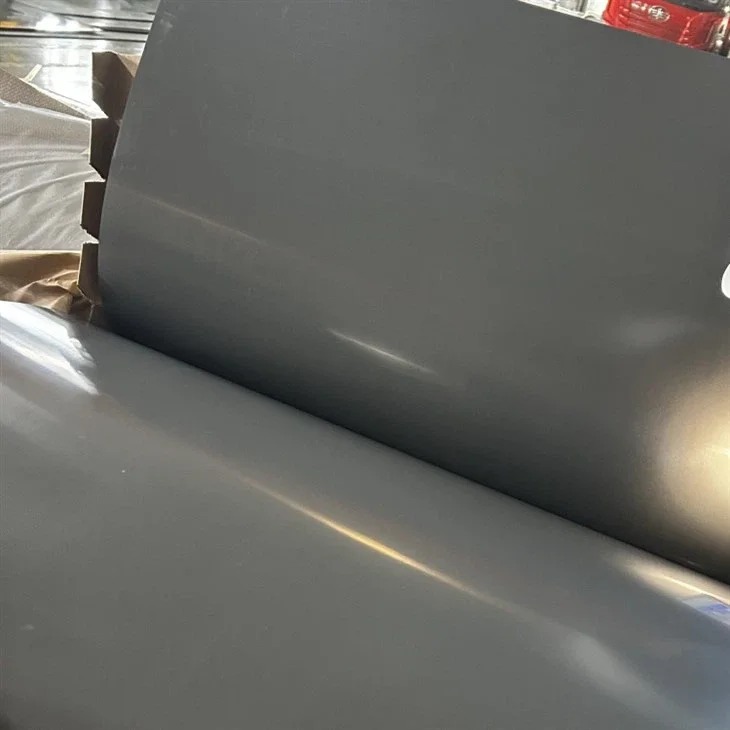

Product: oriented (GO) electrical steel B18R070 strip ,oriented Silicon steel sheet B18R070

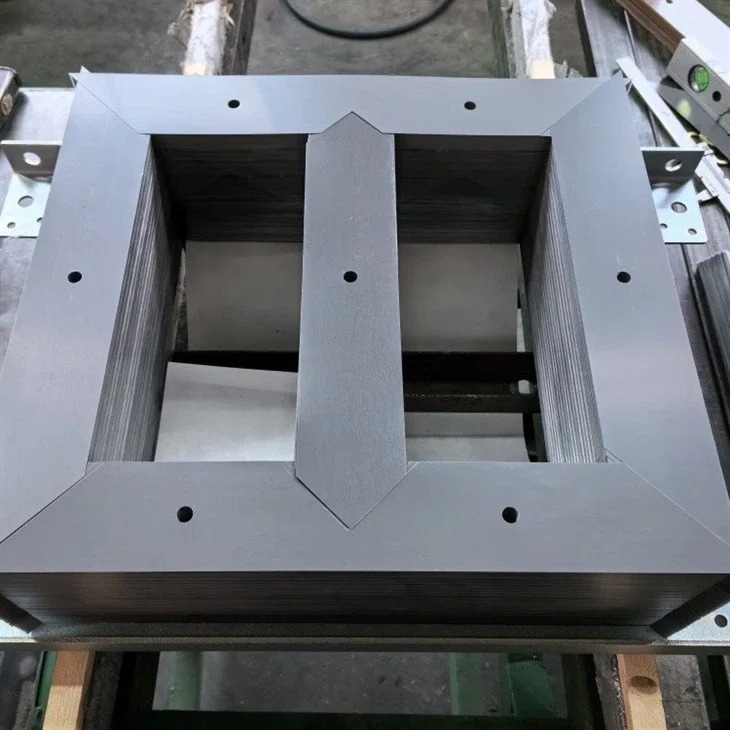

GO Electrical steel B18R070 application: Transformer, reactor, mutual inductor, motor
GO Electrical steel B18R070 insulation coating: S
GO Electrical steel B18R070 Edge condition: Cut edge(EC)
B18R070 GO Electrical steel type: Domain refinement
B18R070 oriented (GO) electrical steel manufacturer: BAOWU STEEL, CHINA
Grade | Thickness (mm) | Assumed Density (kg/dm3) |
B18R070 | 0.18 | 7.65 |
Typical values | Guaranteed values | Lamination factory(stacking/space factor) | ||
P1.7/50 (W/Kg) | B8 (T) | P1.7/50 (W/Kg) max | B8 (T) min | Min. Lamination factory |
0.68 | 1.90 | 0.69 | 1.88 | 94% |
Nominal thickness(mm) | Nominal thickness tolerance(mm) | Longitudinal thickness deviation(mm) | Transverse thickness deviation(mm) | Width tolerance(Cut edge)(mm) | Burr height(mm) | Nominal width(mm) |
0.18 | +0.010 | +0.012 | +0.010 | +0.5 | ≤0.025 | 900-1050 |
Tensile strength(L) | Yield strength(L) | Elongation(L) | HV1 |
345MPa | 324MPa | 13% | 201 |
